These
brush cutters can mulch
up to 18" diameter trees
|
|
"SLASHBUSTER"®
HD 480B
Our
flagship model and a must for
contractors who demand a brush
cutter with high production
rates, dependability and versatility.
The HD
480B is a no-compromise
design that delivers as promised. |
General Specifications
Brochure
140K
|
|
"SLASHBUSTER"®
HD 420B
Identical
to the HD 480B except in scale,
the HD 420 B brush cutter is
a more appropriate fit for smaller
carriers. |
General
Specifications
-
Cuts
and mulches trees to 14"
diameter
-
46"
cutting swath
-
Third boom and material
handler standard
-
Automatic
wire shear standard
-
Rotating
hub debris guard standard
-
Adaptable
to any excavator brand
from 35,000-lb to 100,000-lb
-
Magnum drive system standard
-
Optional
90-degree tilt mount
-
Optional
remote spot herbicide
applicator
-
Optional
hydraulic trimming saw
|
|
"SLASHBUSTER"®
HD 482
& HD 422
HD
482 & HD 422 brush cutters
have all the durability and efficiency
of the above models, but without
third boom extensions. An ideal
match for long reach excavators. |
General
Specifications
- 52" or
46"cutting swath
- Recommended
for long front or standard
front excavator
-
Automatic
wire shear standard
-
Rotating
hub debris guard standard
-
Magnum drive system standard
-
Optional
90-degree tilt mount
-
Optional
remote spot herbicide applicator
-
Optional
hydraulic trimming saw
-
Adaptable
to any excavator brand
from 28,000-lb to 100,000-lb
|
|
|
|
"SLASHBUSTER"®
XL 480SB
The world's only brush
cutter with a hydraulically
operated rotating
debris shroud.
Developed in response
to safety concerns
over ejected debris,
the XL
480SB brush cutter
features a 180-degree
rotating shroud; giving
you the ultimate in
control. This development
makes it possible
to work near houses,
roadways, utility
poles, etc, with a
much lower risk compared
to any other brushcutter.
|
General
Specifications
- 180
Degree hydraulically
operated rotating
shroud
- Cuts
brush and trees
to 8" diameter
- 48"
cutting swath
- Third
boom extension and
material handler
standard
- Automatic
wire shear standard
- Rotating
hub debris guard
standard
- Optional
wheel speeds to
800 RPM
- Shown
with optional 90-degree
tilt mount
- Optional
remote spot herbicide
applicator
- Adaptable
to any excavator
brand from 35,000-lb
to 100,000-lb
Brochure
328K |
"SLASHBUSTER"®
XL 480S
The
XL
480S brush cutter
is Identical to
the XL 480 SB, but
without a third
boom extension.
|
-
180
degree hydraulically
operated rotating
shroud
-
Cuts
and mulches stems
to 8" dia.
-
48"
cutting swath
-
Automatic
wire shear standard
-
Rotating
hub debris guard
standard
-
Optional
90-degree tilt
mount
-
Optional
remote spot herbicide
applicator
-
Adaptable
to any excavator
brand excavator
from 29,000-lb
to 59,000-lb
|
"SLASHBUSTER"® XL 480B
The XL 480B is an XL 480 with a third boom, serving up a price and performance that is hard to beat.
|
General Specifications
- Recommended for
walking excavators
or long front
excavators
- 48"
cutting swath
- Automatic
wire shear standard
- Rotating
hub debris guard
standard
- Optional
60" cutting
swath
- Optional
wheel speeds to
800 RPM
- Optional
90-degree tilt
mount
- Optional remote
spot herbicide
applicator
|
"SLASHBUSTER"® XL 480
*
pictured with optional
hydraulic thumb
The XL
480 brush cutter features a more enclosed
shroud design than
our other models. |
General Specifications
- Recommended for
walking excavators
or long front
excavators
- 48"
cutting swath
- "S-7" mulching disk standard
- Automatic
wire shear standard
- Rotating
hub debris guard
standard
- Optional
60" cutting
swath
- Optional
wheel speeds to
800 RPM
- Optional
90-degree tilt
mount
- Optional
quick disconnect
- Optional remote
spot herbicide
applicator
- Optional
flail mower blade
- Available
to operate with
standard excavator
bucket thumb or
optional hydraulic
thumb
- 1,300-lb.
to 2,300-lb. total
weight (varies
with excavator
size and options)
|
|
After numerous
requests, we developed a brush
cutter line that will fit
excavators as small as 3,500
lbs. The response has been
tremendous, and for light-duty
applications they really can't
be beat.
|
|

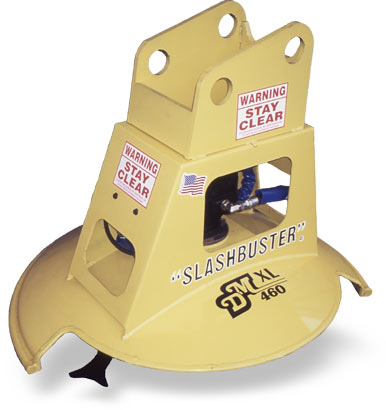

"SLASHBUSTER"® XL 460
Bridging the gap between mid-sized and mini excavators, the XL460 brush cutter attaches to compact excavators in the 6-8 ton class and is capable of mulching brush and stems up to 3" in diameter.
|
General
Specifications
- Recommended
for small excavators
- 46"
cutting swath
- Flail
mower blade
- Automatic
wire
shear standard
- Rotating
hub debris guard standard
- Optional
blade speeds to 800 RPM
- Optional
90-degree tilt mount
- Optional
quick disconnect
- Optional
remote spot herbicide applicator
- 750-lb.
to 850-lb. total weight
(varies with excavator size
and options)
Brochure
60K
|
|
"SLASHBUSTER"®
XL 330
Purpose-built
for its application, the XL
330
mini excavator brush cutter
attachment excels in maintenance
brushing. Small in size, it
still shares the extra-durable
triple-welded construction of
our larger brush cutter models. |
General
Specifications
- Recommended
for mini excavators
- 33"
cutting swath
- Blade
bar cutter
- Optional
quick disconnect
- Optional
remote spot herbicide applicator
- 200-lb.
to 300-lb. total weight
(varies with excavator size
and options)
|
Guide for matching Slashbuster® models with appropriate carriers:
| |
|
Excavator Size, Tons |
|
|
| Model |
Duty |
1-3 |
3-10 |
10-13 |
14-16 |
18-20 |
20+ |
long reach ready |
back-
hoe ready |
| HD 480B |
Extreme |
|
|
|
|
|
|
|
|
| HD 482 |
Extreme |
|
|
|
|
|
|
|
|
| HD 420B |
Extreme |
|
|
|
|
|
|
|
|
| HD 422 |
Extreme |
|
|
|
|
|
|
|
|
| XL 480SB |
Maintenance |
|
|
|
|
|
|
|
|
| XL 480B |
Maintenance |
|
|
|
|
|
|
|
|
| XL 480S |
Maintenance |
|
|
|
|
|
|
|
|
| XL 480 |
Maintenance |
|
|
|
|
|
|
|
|
| XL 460 |
Maintenance |
|
|
|
|
|
|
|
|
| XL 330 |
Maintenance |
|
|
|
|
|
|
|
|
Performance is determined by the excavator's available horsepower
|
|
|
|
